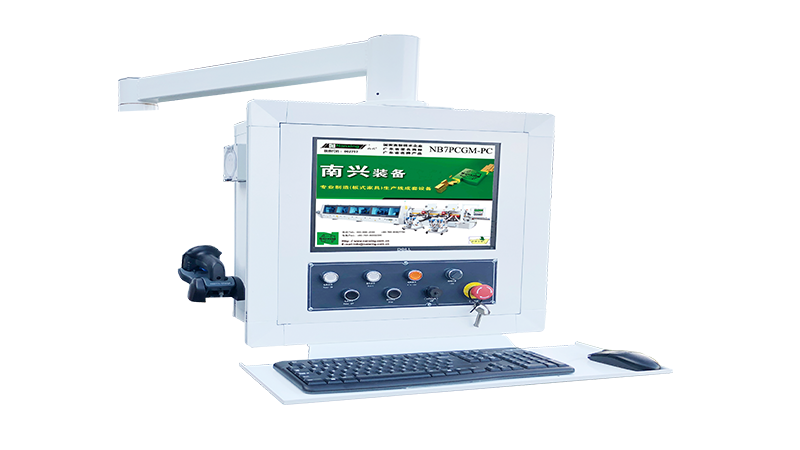

PC control

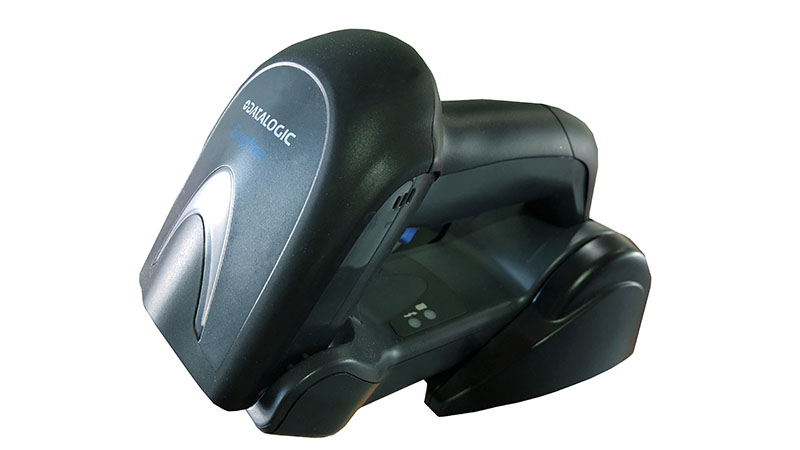

Bar code reader

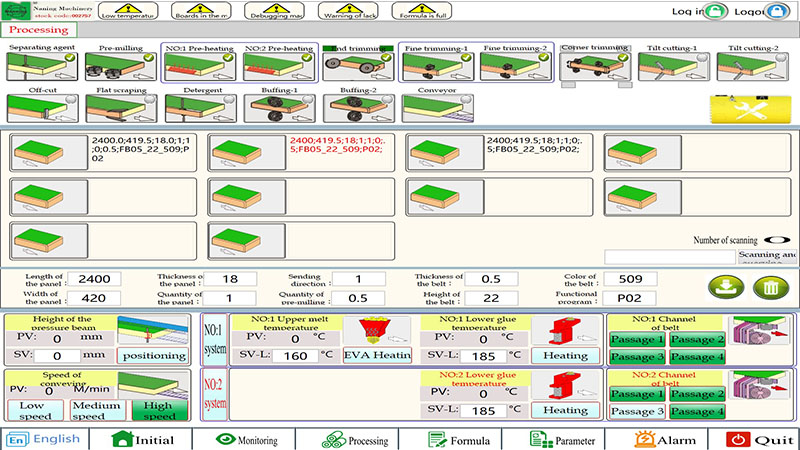

Operation interface

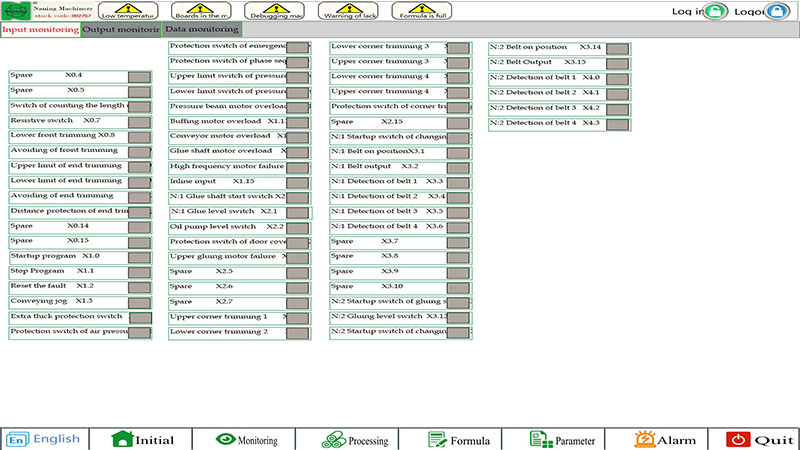

Status monitor
Falit Machinery Co.,Ltd.
跨度可达16米，运输长度可达50米及更高值

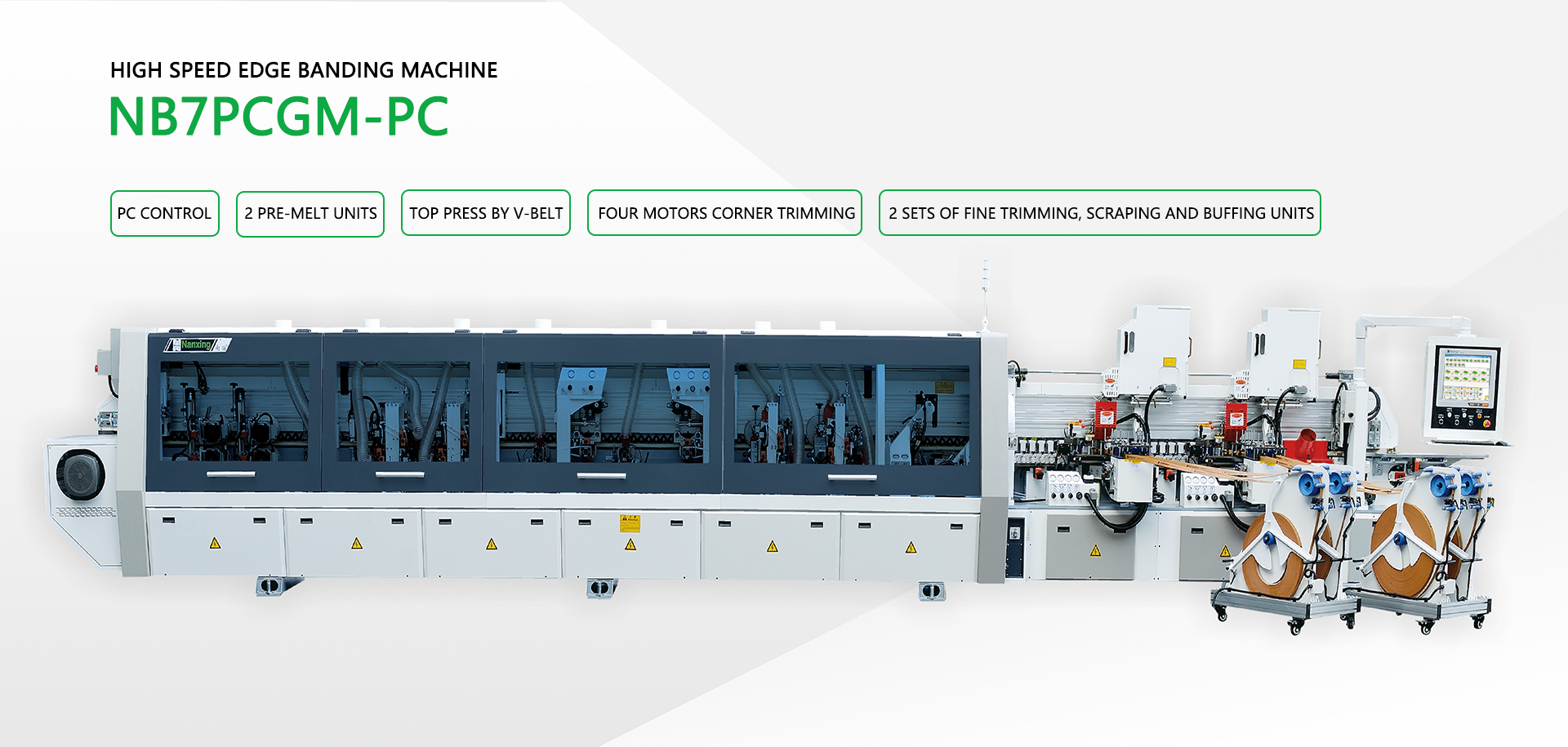

Model
NB7PCGM-PC
Panel length
≥120mm（corner trim on≥200mm）
Panel width
≥80mm
Min panel size
200×80mm（corner trim on）
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
18/22/26m/min
Feeding speed(corner trimming on)
22m/min
Dust extraction
φ125mm×8
Total power
42kw
Overall dimension
11200×1450×1650mm
Net weight
6110kg
