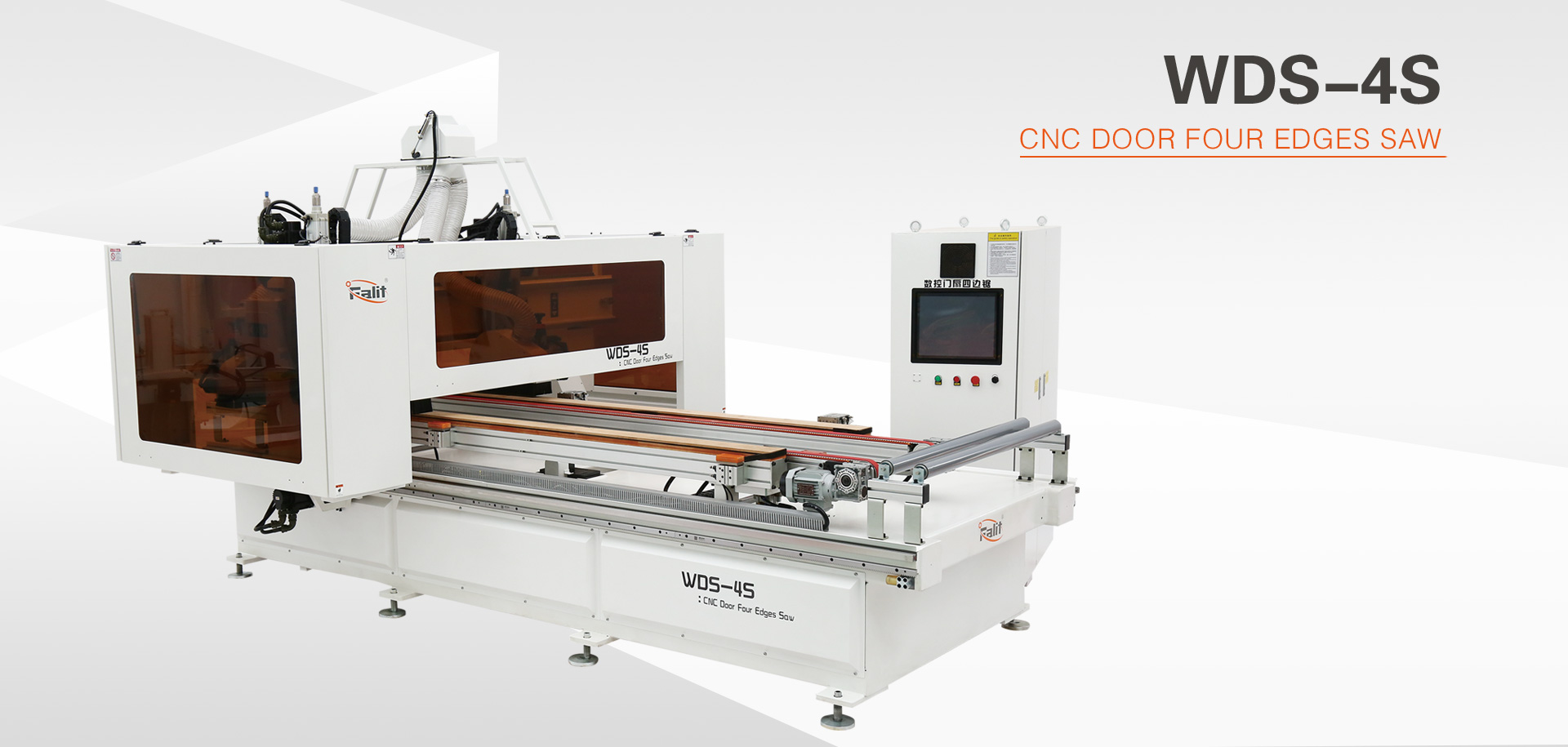

CNC Door Four Edges Saw WDS-4S

Highlights

  • The equipment has a compact overall structure, Integrated gantry frame, Make the machine tool run stable and reliable;
  • Design with main and scoring saws, High working efficiency, low noise and high accuracy;
  • Automatic alignment device, machine can be operated individually, and connect with production line.
  • Side keyhole saw group is equipped with angle adjustment, The saw blade can tilt angle, Meet the needs of saw cutting oblique edge;
  • Automatic in and out of materials, Positive discharge direction, Can meet the needs of single machine and connection;
  • Automatic in and out of materials, Positive discharge direction, Can meet the needs of single machine and connection;
  • Double sides belt conveyor for leftover material collector on WDS5425.

More information you need?
Contact us now!

Falit Machinery Co.,Ltd.

+86510-88588333-816 linda@falitmac.com Information form

Technician Data

Model WDS-4S WDS5425
panel length  1800-2500 mm 1800-2500 mm
panel width 500-1200 mm 500-1100 mm
panel thickness 30-60 mm 30-60 mm
Main saw power 7.5kw 7.5kw
main saw rotating speed 6000rpm 6000rpm
main saw diameter  Φ300-Φ30mm Φ300-Φ30mm
scoring saw power  0.50kw  0.50kw
scoring saw rotating speed 12000rpm 12000rpm
scoring saw diameter  Φ120-Φ22mm Φ120-Φ22mm
saw blade adjustable angle 0-5° 0-5°
total power  30kw 32kw
machine weight 4000×2700×2200mm 4000×2500×2400mm
machine weight
2880kg
3200kg
