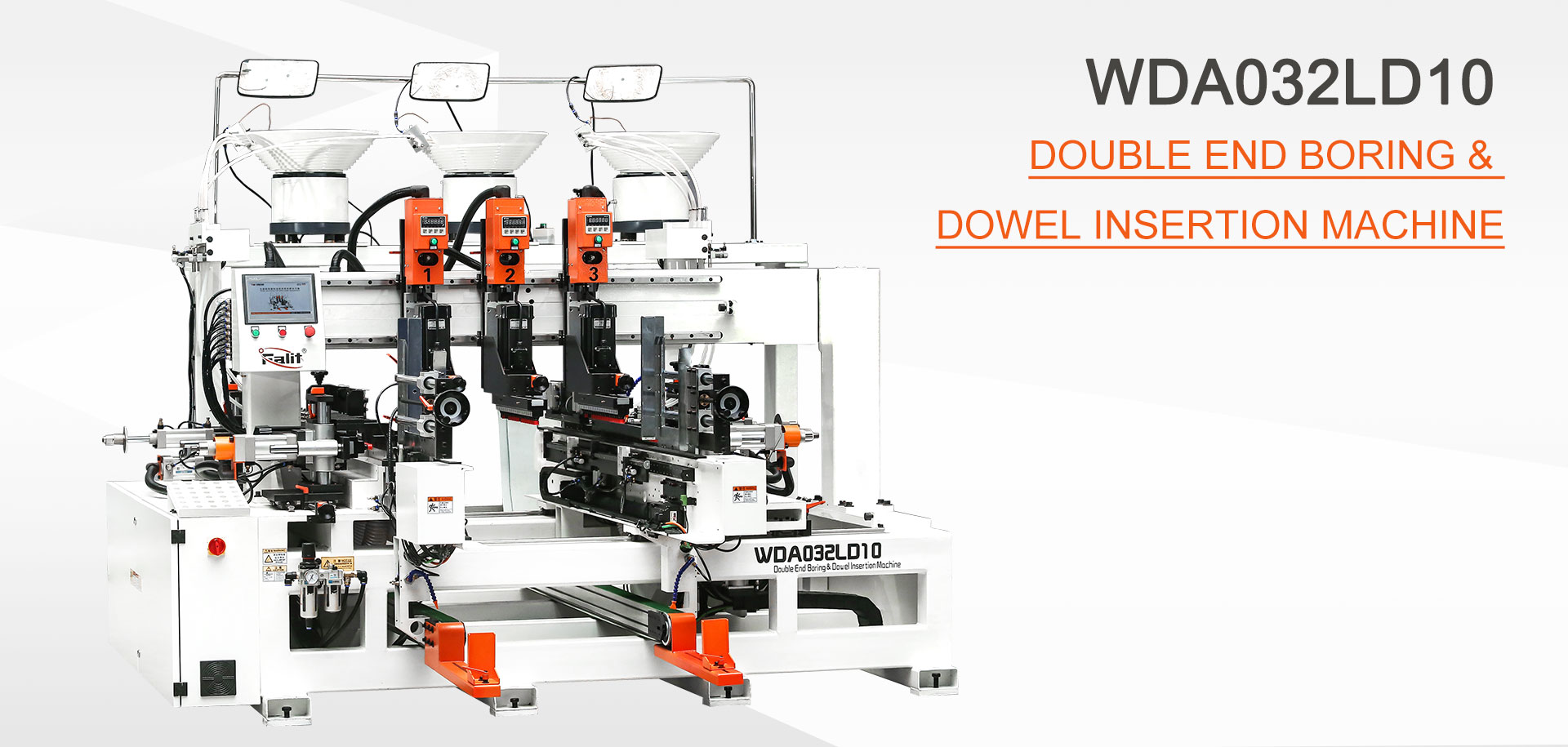

Double End Drilling & Dowel Insertion Machine WDA032LD10
WDA032LD10, double end Drilling & dowel insertion machine is special designed for Drilling work of small narrow board like drawer small furniture parts, feed in & out from front, this kind of return feed system plus simplified Drilling process make it possible to finish Drilling and double end inserting dowel requirements in one process.cnc Drilling & dowel insertion machine
Double End Drilling & Dowel Insertion Machine WDA032LD10 is special designed for Drilling work of small narrow board like drawer small furniture parts, feed in & out from front, this kind of return feed system plus simplified Drilling process make it possible to finish Drilling and double end inserting dowel requirements in one process. Working width up to 530mm, total 10pcs dowels can fitting at one time.
Highlights
-
Return feed system, feed in & out from front, boards are able to return automatically after Drilling, one operator is enough for putting and discharge boards, fast and efficient;
-
Independent boards feeding storage protects boards surface effectively;
-
Three vertical rows on top and two horizontal drills on two sides. The design 7 drills on each row can meet various Drilling requirements of small boards. Horizontal and vertical rows are able to work asynchronously or synchronously.
-
Double end horizontal dowel insertion after Drilling. Dowel insertion quantity have 2+2, 3+3, 4+4, 5+5pcs optional. Dowel diameter have 6/8/10mm optional.
-
Drilling rows position is easy to adjust by using a digital display sensor, easy operation and training;
-
Touch screen, boards counting, positioning, storage, Drilling , inserting dowels are available at a glance thanks to inventive system, simplifies the operation.
