Falit Machinery Co.,Ltd.
跨度可达16米,运输长度可达50米及更高值
Model
WDC6421N
panel length
200-3000mm
panel width
30-1200mm
panel thickness
10-60mm
max. travelling speed (X/U/Y/Z)
135/135/75/30m/min
Spindle power
3.5kw * 2
Spindle rotating speed
18000rpm

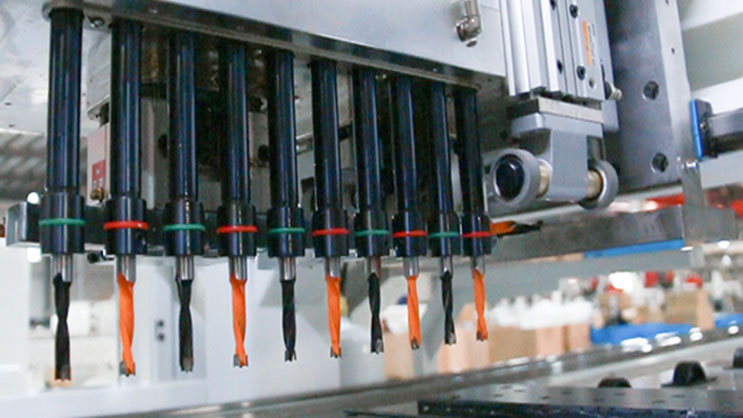

Top vertical drills
18×2
Top horizontal drills
X:6×2 Y:4×2
Bottom vertical drills
9
Drill rotating speed
5000rpm
Dust collector mouth
Top:φ200mm×2, Bottom:φ125mm
Total power
21.93kw
Machine size
6150×2806×2325mm
Net weight
3750KG
