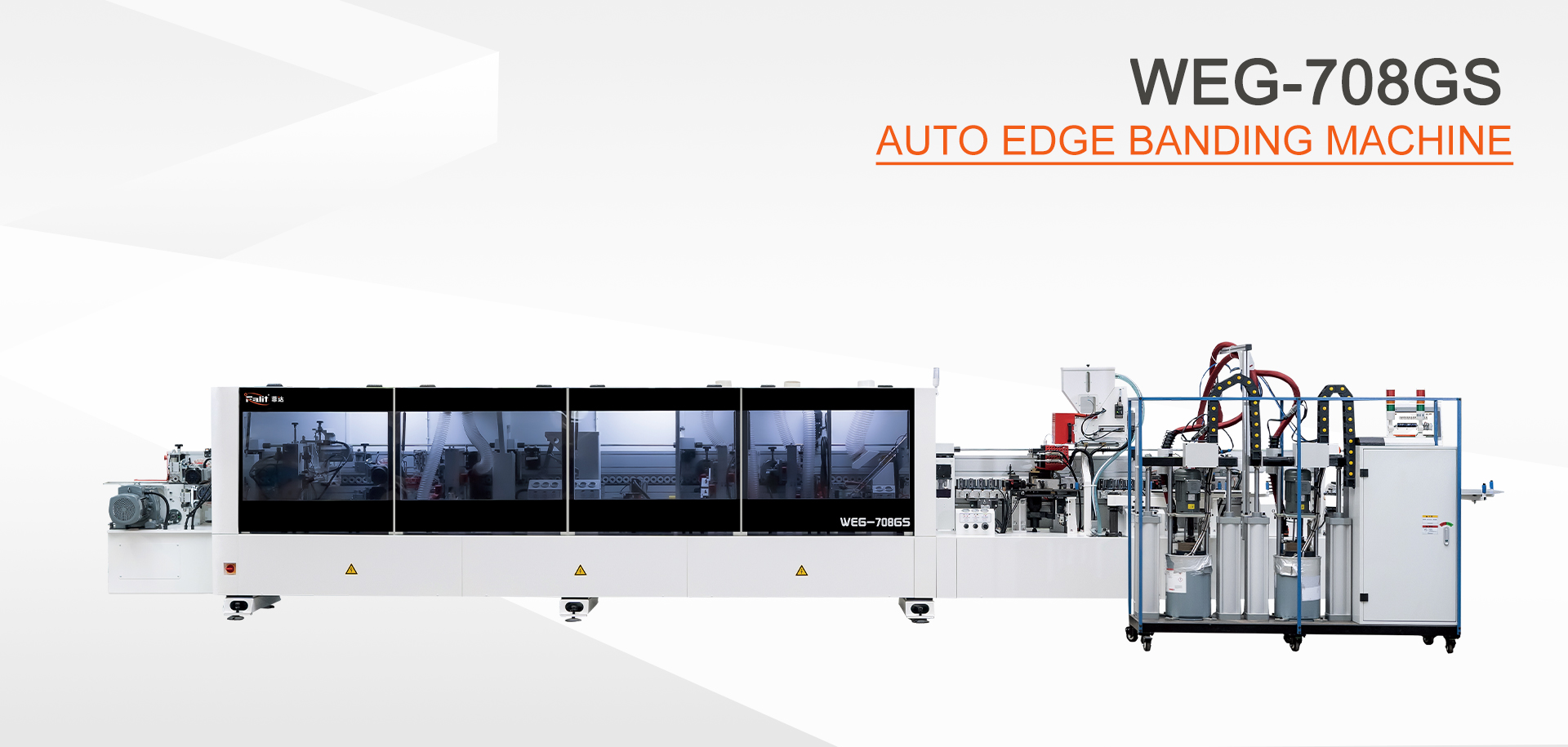

Edge banding machine with PUR gluing unit WEG-708GS



Highlights

  • Standard flexible flat scraping,make the edge banding better;
  • Equipped with two colors PUR unit, meet the requirements of different glue color requirements;
  • Equipped with two buffing units;could choose different colors to buffing,
  • Energy-saving function: when machine don’t machining for a certain time (time setting),machine automatically enters the standby state, such as the motor stop;
  • Adopt encoder replace with sensor, reduce fault occurs.With capacity statistical function, consumables statistical, machine working efficiency statistical function, easy for production management.
  • The machine is equipped with an air tank to ensure the working stability of the corner trimming device.


More information you need?
Contact us now!

Falit Machinery Co.,Ltd.

+86510-88588333-816 linda@falitmac.com Information form

Technician Data

Model

WEG-708GS

Panel length

≥120mm

Panel width

≥60mm

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

9-24m/min

Dust extraction

φ125mm*5

Total power

35.5kw

Min panel size

120*60mm

Machine size

9550*850*1850mm

Machine weight

3600kg
