Nc Sliding Table Saw WPS332F1

The NC Sliding Table Saw can be moved automatically through the control of the touch screen, which is very simple and precise. Because the fuselage structure and parts are made by cnc processing, the fuselage is firm, stable, and has a long service life. This product is of high quality and low price. Welcome to consult and order.

Nc Sliding Table Saw,wood beam saw machine,woodworking machine panel saw,computer panel saw

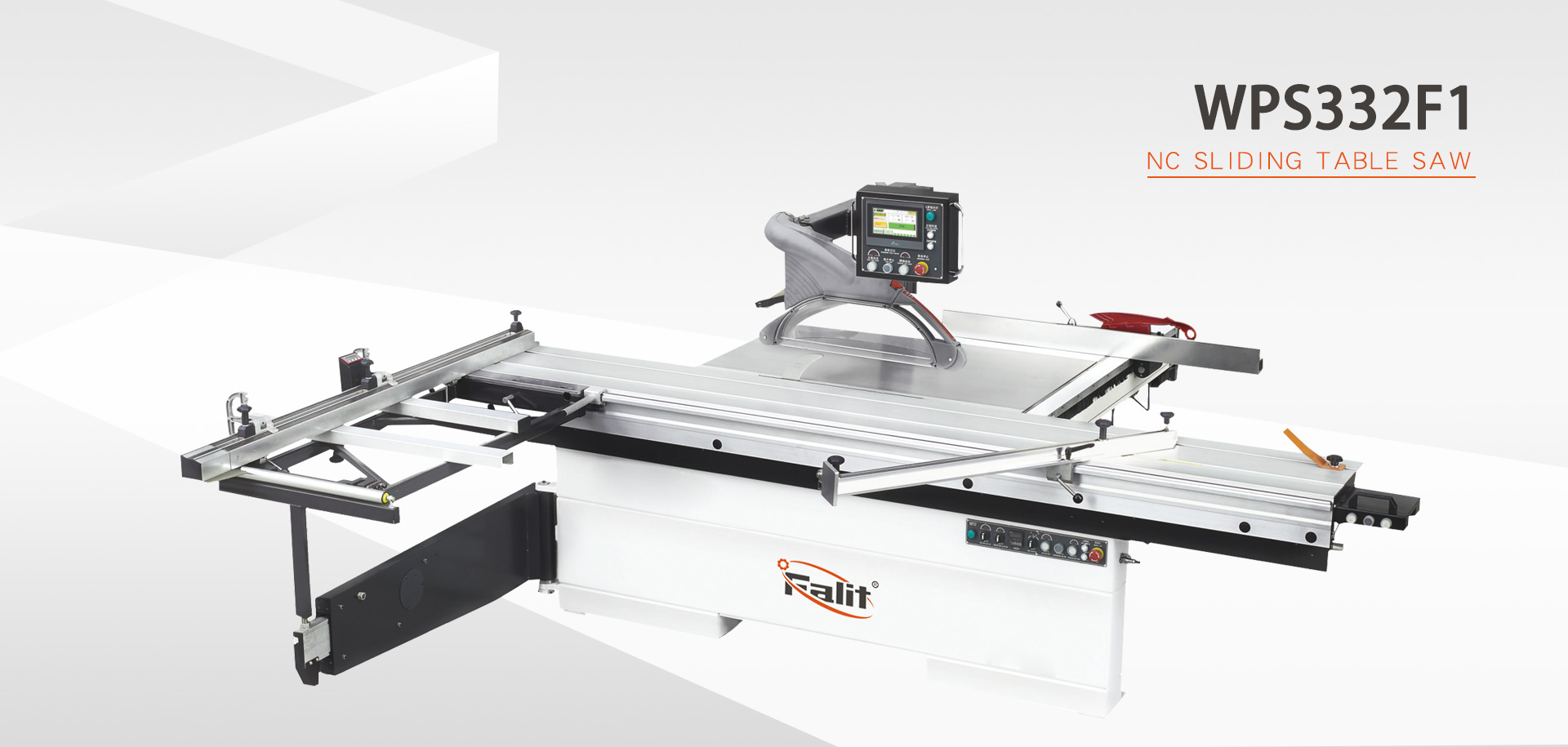

NC Sliding Table Saw WPS332F1

Features

  • Crosswise guiding board can move automatically by controlling on touch screen, easy and precise.
  • Strong machine body for great stability and longer service life.
  • Height of saw blade can be adjusted electrically just by one button.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.

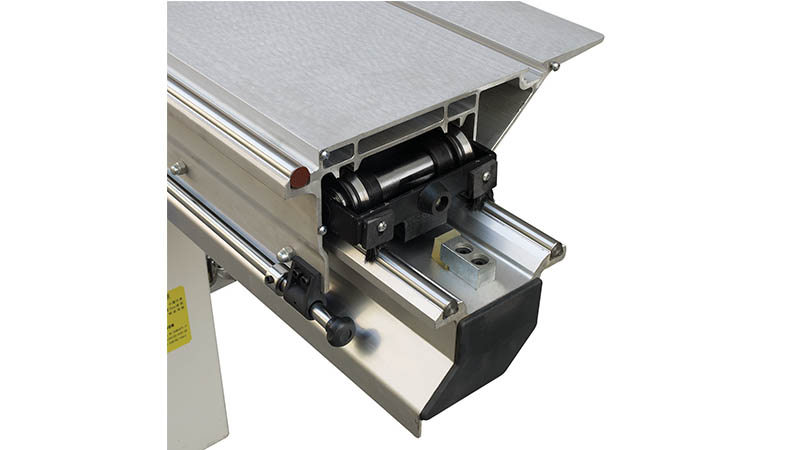

Sliding table

NC control

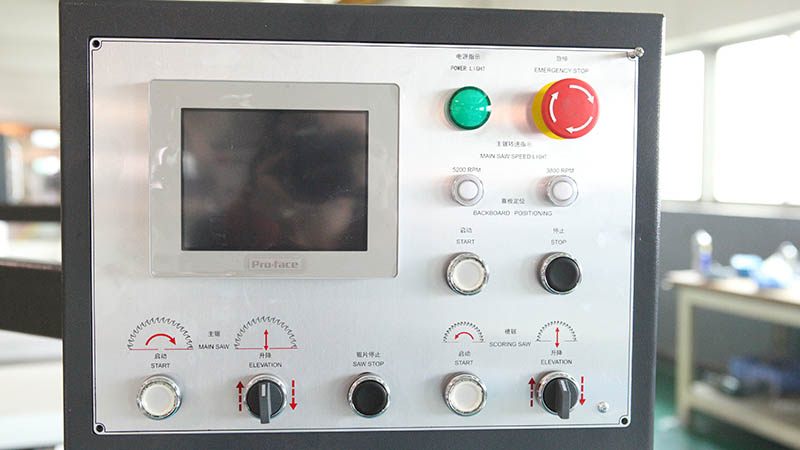

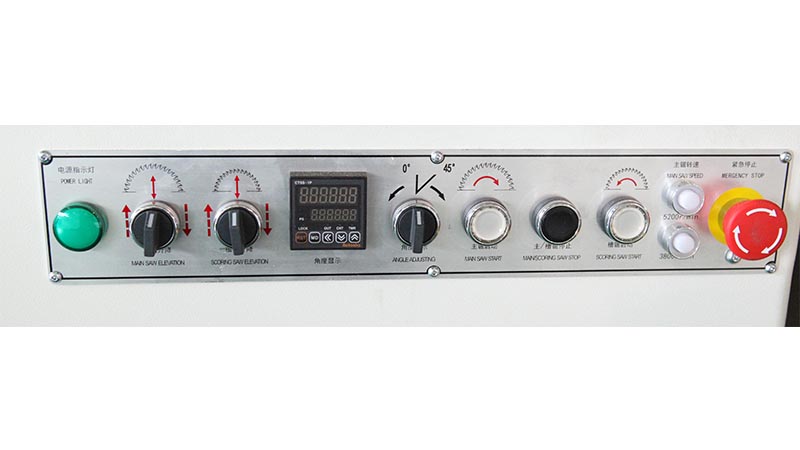

Operation panel

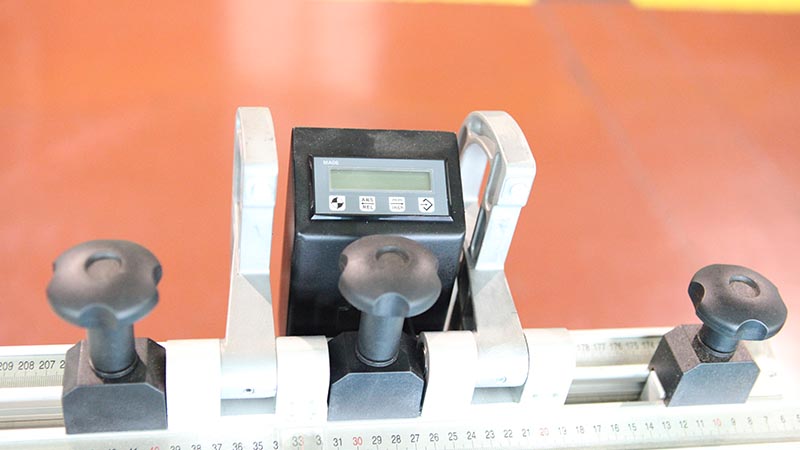

Transverse baffle

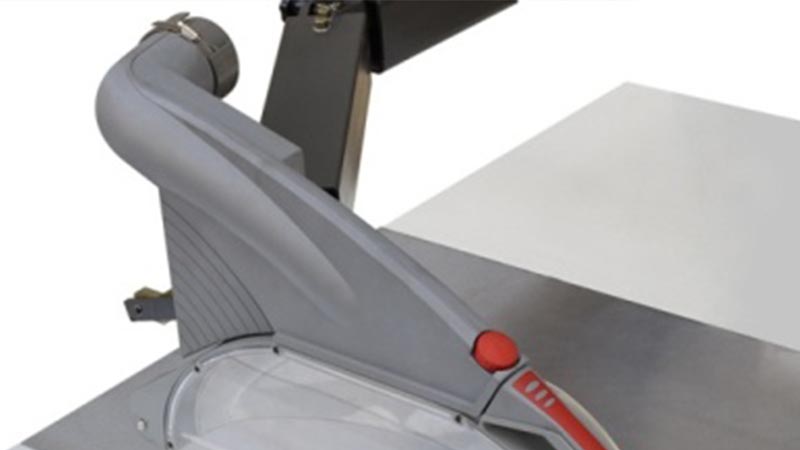

European big dust extraction cover

More information you need?
Contact us now!

Falit Machinery Co.,Ltd.

+86510-88588333-816 linda@falitmac.com Information form

Technician Data

Model WPS332F1
max. cutting length 3100mm
0°cutting thickness 100mm
45°cutting thickness 70mm
main saw rotating speed 3800/5200rpm
main saw motor 5.5kw
scoring saw rotating speed 9000rpm
scoring saw motor 1.1kw
saw blade tilting 0-45°
dust collector Φ120mm
total power 6.6kw
machine size 3300×3430×1670mm
machine weight 980kg
