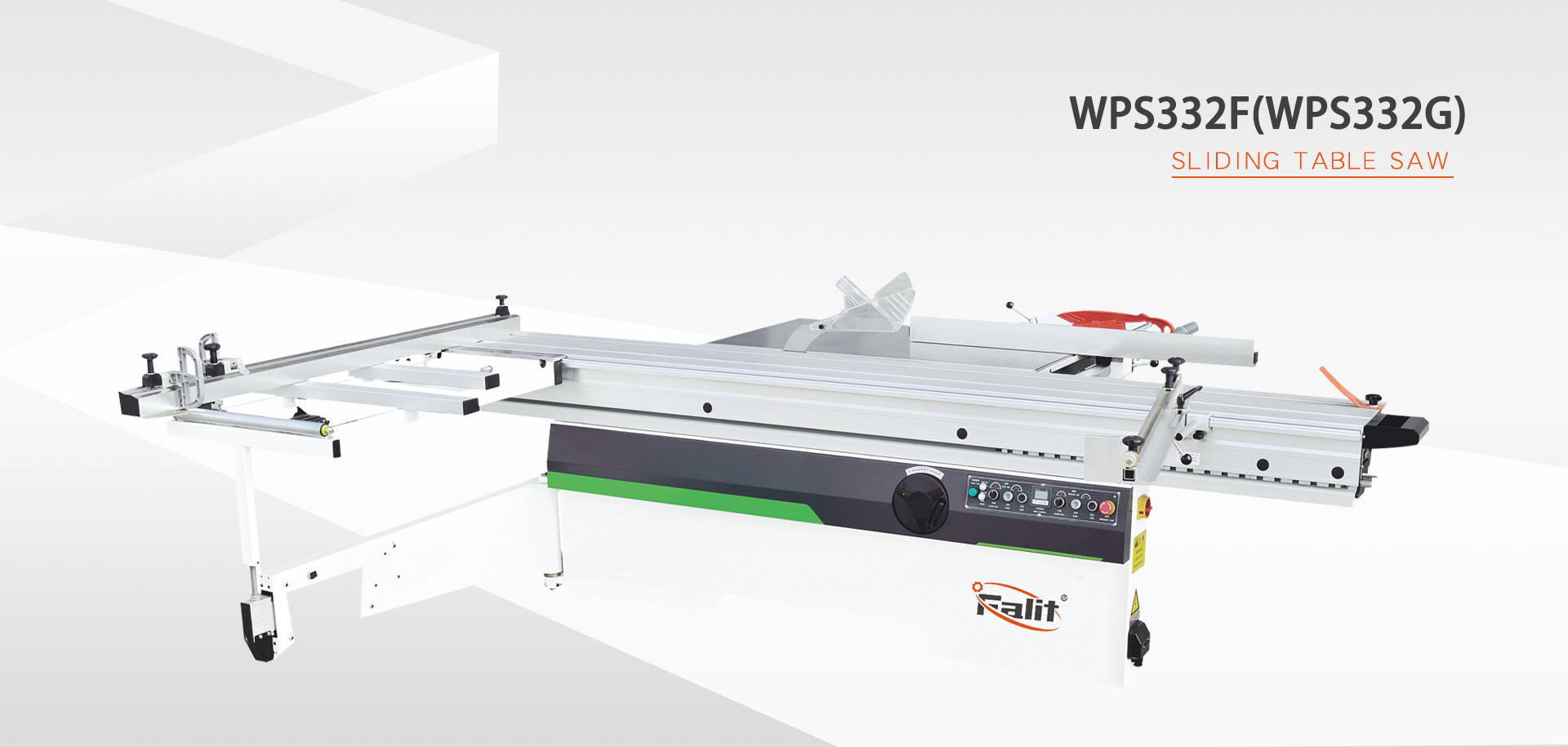

Sliding Table Saw WPS332F(WPS332G)

The Sliding Table Saw body and most mechanical parts are processed by CNC machine tools, so the quality is guaranteed, the stability is higher, and it is not easy to deform, so the service life can be longer. This machine can adjust the height of the saw blade electrically with one button. , the operation is very simple.

Sliding Table Saw WPS332F

Features

  • Strong machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.
  • Height of saw blade can be adjusted electrically just by one button.
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel.
  • Optional MJ1138F for your choice for cutting max 3.7m panel.

Sliding Table Saw WPS332G

Features

  • Strong machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Powerful saw motor, easy running sliding table, precise guiding board.
  • Height of saw blade can be adjusted electrically just by one button

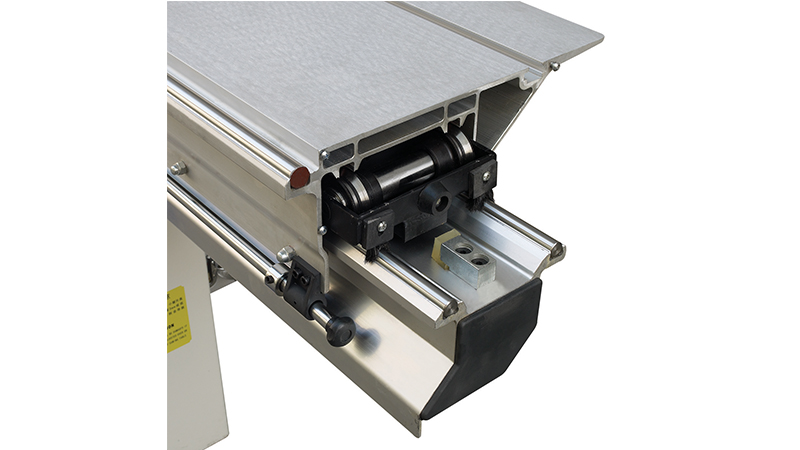

Sliding table

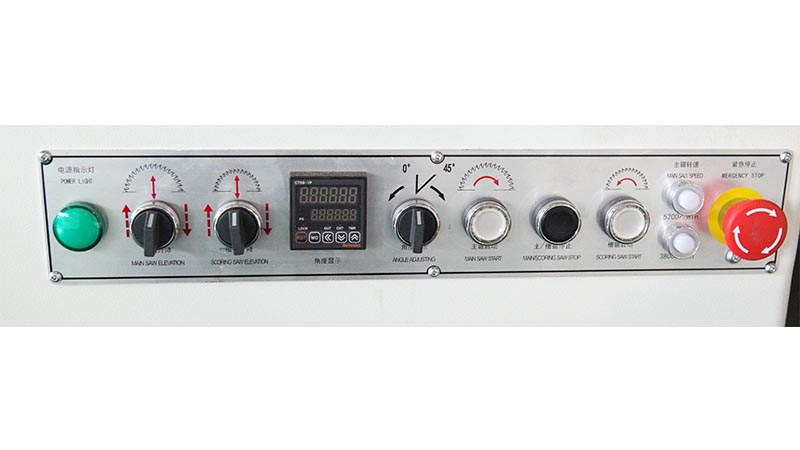

Operation panel

Strong guiding rod

Details for higher performance

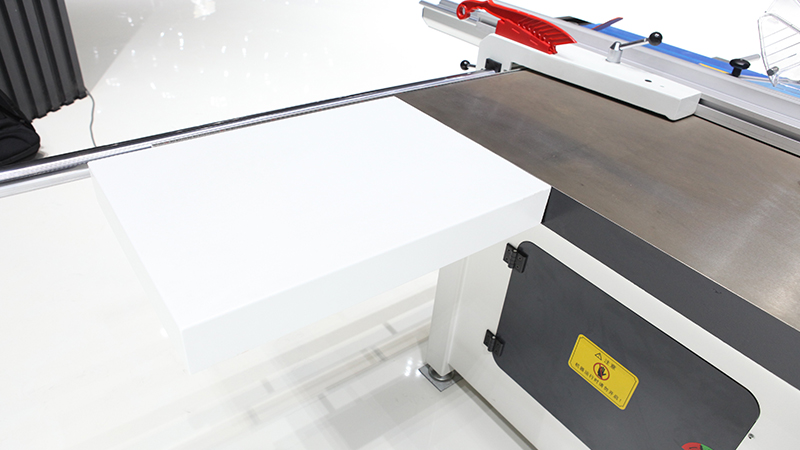

Extended table plate

Strong table plate

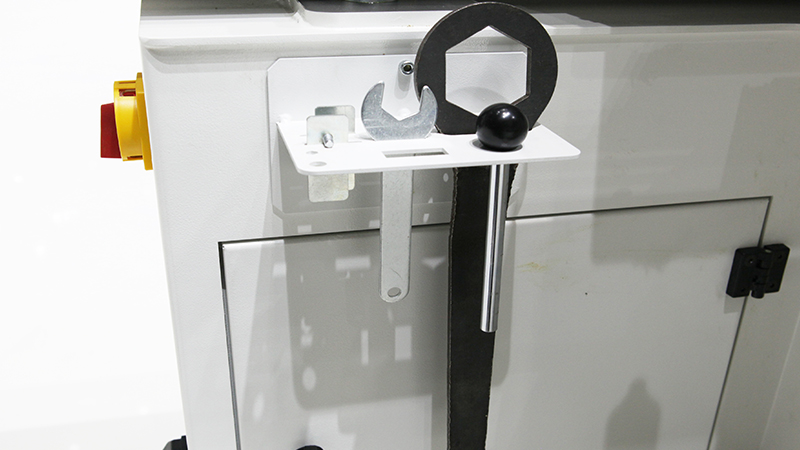

Tool storage

More information you need?
Contact us now!

Falit Machinery Co.,Ltd.

+86510-88588333-816 linda@falitmac.com Information form

Technician Data

Model WPS332F WPS332G
max cutting length 3100mm 3100mm
0°cutting thickness 100mm 100mm
45°cutting thickness 70mm ----
main saw rotating speed 3800/5200rpm 3800/5200rpm
main saw motor 5.5kw 5.5kw
scoring saw rotating speed 9000rpm 9000rpm
scoring saw motor 1.1kw 1.1kw
saw blade tilting 0-45° 0°
dust collector Φ120mm Φ120mm
total power 6.6kw 6.6kw
machine size 3300×3370×1200mm 3300×3330×1050mm
machine weight 785kg 750kg
