Edge banding machine for narrow parts WEG-700SZ



Highlights

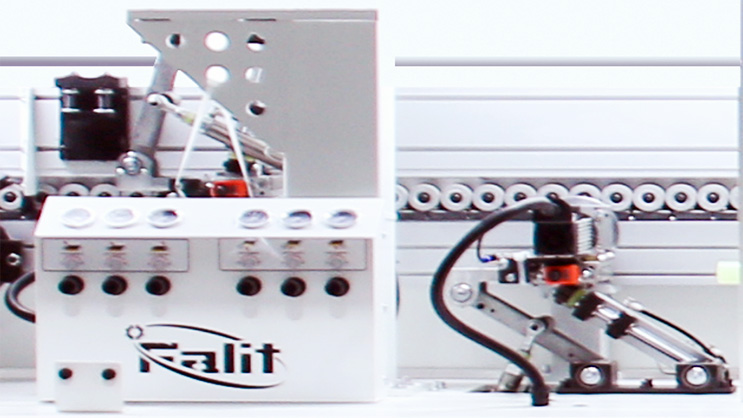

  • Narrow parts feeding device,convenient operation and feeding stable for small panels;
  • With two glue pots for different color edge tape and glue;
  • Automatic cutter double fine trimming and double scraping, meet different thickness edge tape quick exchange;

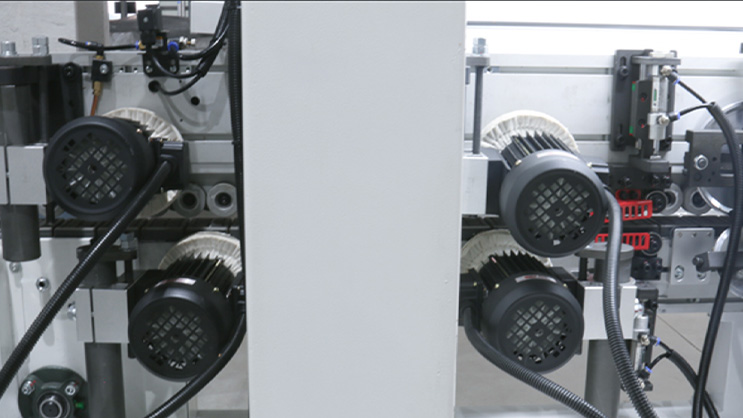

  • Equipped with two buffing units, different colors exchange, make edge banding better;
  • Energy-saving function: when machine don’t machining for a certain time (time setting),machine automatically enters the standby state, such as the motor stop;

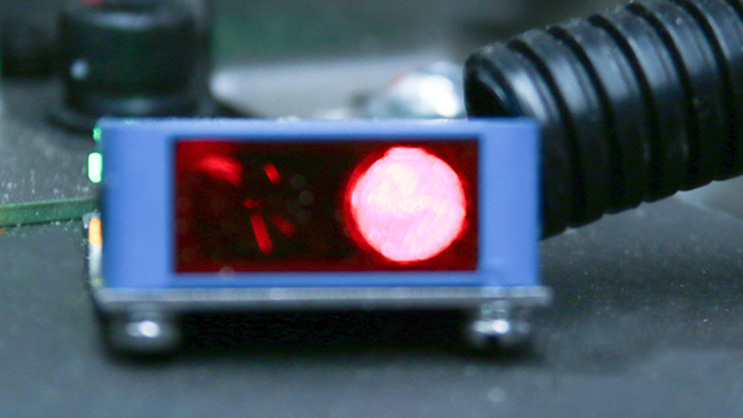

  • Adopt encoder replace with sensor, reduce fault occurs.With capacity statistical function, consumables statistical, machine working efficiency statistical function, easy for production management;

More information you need?
Contact us now!

Falit Machinery Co.,Ltd.

+86510-88588333-816 linda@falitmac.com Information form

Technician Data

Model

WEG-700SZ

Panel length

≥120mm

Panel width

≥40mm

Panel thickness

9-60mm(short side corner trimming ON ≤25mm)

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Dust extraction

φ125mm*6

Total power

32kw

Min panel size

120*40mm(short side) 300*40mm(long side)

Machine size

9550*850*1850mm

Machine weight

3300kg
