Machine functions

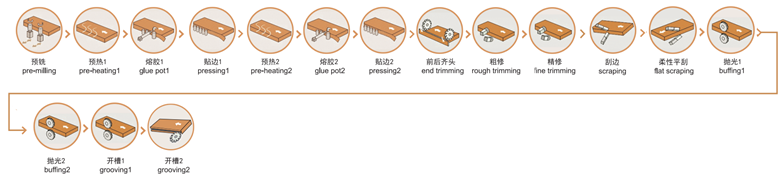

Equipped with pre-milling (standard 55mm high pre-milling cutter), pre-heating1, glue pot1, feeding1, pressing1, pre-heating2, glue pot2, feeding2, pressing2, end trimming, rough trimming, fine trimming,scraping, buffing, grooving1, grooving2;
The equipment is equipped with grooving unit, and the work piece is grooved during edge banding to reduce the work piece processing procedure and increase the output.
Energy-saving unit: when machine don’t machining for a certain time (time setting),machine automatically enters the standby state, such as the motor stop;
Adopt encoder replace with sensor, reduce fault occurs.With capacity statistical unit, consumables statistical, machine working efficiency statistical unit, easy for production management;
Equipped with two groups of glue pots,which can meet the different edge banding glue color requirements;
Falit Machinery Co.,Ltd.
Model
WEG-505S
Panel length
≥120mm
Panel width
≥60mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feeding speed
16/20/24m/min
Dust extraction
φ125mm*6
Total power
41kw
Min panel size
120*60mm
Machine size
8750*850*1850mm
Machine weight
3400kg
